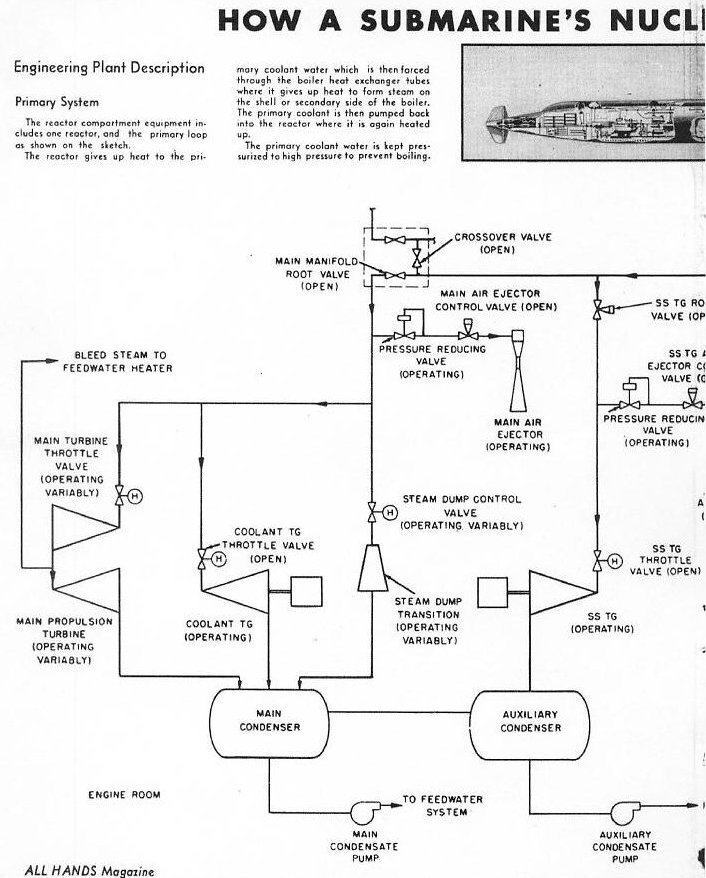

These two diagram pages from the April 1956 issue of All Hands Magazine explain how the nuclear power plant aboard USS Nautilus (SSN-571) works. The illustrations trace the flow from the reactor core through the steam generators, turbines, and reduction gears to the propeller shaft — a clear visual explanation of how atomic energy drives a submarine through the sea.
Page 32 — click to enlarge
Page 33 — click to enlarge
